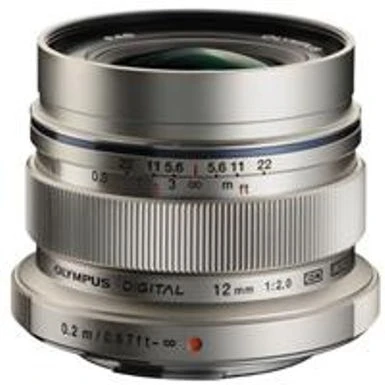

Olympus M.Zuiko Digital ED 12mm F/2 Lens – For Micro Four Thirds System – Silver

M. Zuiko Digital ED 12m f2.0 lens (24mm equivalent): This high-speed, single-focal-length, wide-angle lens is ideal for shooting high-quality, dramatic landscapes and street scenes in low-light conditions. It has a beautiful full-metal body and a snap ring that enables photographers to pan focus with a distance indicator. The Movie-Still-Compatible (MSC) mechanism utilizes nearly silent focusing technology. It is great for tracking a moving child or pet, and provides a quick and silent focus mechanism for movies and still photography.

A compact size that can produce high image quality is thanks to the rational design
A rational lens design of 11 elements in 8 groups enables a compact form and excellent image capture. To ensure clear imaging performance even under unfavorable conditions such as when shooting against the light, the lens surfaces are coated with ZERO Coating, which eliminates previously hard-to-prevent issues with ghosts and flares.

DSA (Dual Super Aspherical) lens – Olympus was the first company in the world to successfully mass-produce the Dual Super Aspherical lens that features an extremely large ratio of thickness between the center and periphery.

Super HR (Ultra High Refractive Index lens) lens – This lens features high refractivity and high spherical aberration correction capability.

ZERO (Zuiko Extra-low Reflection Optical) Coating
This anti-glare coating is an application of a state-of-the-art multilayer film disposition technology Olympus developed for microscopes. This coating cuts the reflectance of wavelengths between 450 and 650 nm in half compared to the previous coating technology. As well as offering clear images, this technology also helps maintain the lens’s low reflectivity by preventing scratches and degradation due to the enhanced strength and durability made possible by vacuum deposition. This coating features high transmittance and minimizes hard-to-prevent artifacts such as ghosts and flares to ensure clear imaging performance even under unfavorable conditions, such as when shooting against the light.

Effective under low light conditions. Large bright F2.0 aperture and in-body image stabilization
Users will enjoy the expanded low-light shooting capability. This is thanks to the wide 12mm angle (equivalent to 24mm of 35mm film camera) and a large aperture of F2.0 as well as the image stabilizer built into the body of all Olympus OM-D and PEN series cameras. Besides typical low-light environments such as dusk or indoors, this lens makes it possible to shoot brilliant wide-angle pictures in locations where a tripod cannot be used as well as in locations where flash use is prohibited (such as zoos).

The MSC (Movie and Still Compatible) mechanism provides fast, quiet AF for both movies and still images
Olympus enhanced the inner-focusing system of interchangeable lenses adopted by conventional SLRs. A screw drive mechanism is used for the drive method for quick, smooth, quiet, high-precision AF (autofocusing). The MSC mechanism incorporated in the ED 12mm F2.0 is the product of advanced optical design technology, developed to enable autofocusing with a lightweight lens element.

Driving the focusing lens using a sub-micron precision metallic shaft and feed screw
The gears have been removed, eliminating operational noise. A sub-micron precision metal axis (shaft) and feed screw are used for efficient, direct driving of the lightweight focusing lens. Enabling faster and quieter autofocusing.

Equipped with an advanced Snapshot Focus mechanism that lets you shift your focusing point to a specific distance
The lens comes equipped with the Snapshot Focus mechanism, which enables deep-focus shooting (in which both subject and background are focused) by using this feature with an appropriate aperture setting. Sliding the focus ring towards you moves the focusing point to a specific distance, while rotating the focus ring moves the focus distance within the scale range indicated on the lens cylinder.

Characteristics of deep focus photography
@@ Both subject/foreground and background can be focused
@@ You do not miss any photo opportunities without using AF
@@ Lets you take photos under conditions where it is difficult to use AF

Sophisticated textured metallic finish for a stylish, classic look in a highly compact design
This lens was designed to be appreciated and used for years to come by adopting a sophisticated textured metallic finish and classic look in a very compact design. Olympus pursued the highest quality in terms of Light, Technology and Materials used. It is easy to recognize this attention to quality and performance at a glance.
